Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Material: Stainless Steel Wire, 302,304,304L,316,316L,321 and 430 etc
  • Type: Wire Cloth
  • Application: Woven Wire Mesh
  • Weave Style: Dutch Weave
  • Wire Diameter: 0.02mm-0.58mm
  • Technique: Woven
  • Model Number: DWM
  • Brand Name: MAISHI
  • Produce name: dutch weave mesh
  • wire diameter: 0.02mm-0.58mm
  • Packaging: moist-proof paper,wooden case,pallet
  • Characteristics: heat-resisting,acid-resisting,corrosion resisting
  • Usage: used in mining,chemical and food industry
  • Certificate: ISO9001:2000
  • Price: reasonable and competitive

Packaging & Delivery

Packaging Details Packaged with water proof paper per roll, then in wooden carton.
Delivery Time within 10days after received the payment

dutch weave mesh

dutch weave stainless steel wire mesh
Material:302,304,304L,316,316L,321
Packaging: moist-proof paper,wooden case,pallet



Material



Material: 302,304,304L,316,316L,321 and 430 etc
Wire diameter:0.02mm-0.58mm
Weaving method: plain dutch weave, dutch twilled weave






1. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
2. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
3. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.



Characteristics:wear-resisting, heat-resisting,acid-resisting,corrosion resisting



Product Description



Stainless steel mesh is the most popular woven screen in the industrial world,as well as printing materials.

Please see below a list that MAISHI can produce:



[ Materials ]: 1.AISI:   AISI 304,AISI 304L,AISI 316,AISI 316L

                       2.T series:      T 304,T 316

                       3.SS series:    SS 410, SS 430, SS 302

                       4.SUS :           SUS 310,SUS 310L

[ Width ] : 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.



[ Roll Length ] : 30m,30.48m or as per your request



HEBEI MAISHI do strictly tested before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.HEBEI MAISHI dostrictly tested before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.



304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.



304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.



316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.



316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.



Plain dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.



Maishi Plain Dutch weave stainless steel woven wire mesh / cloth offers more solid than square or rectangular mesh, relative high open area, suitable for all kinds of filtration.



Twill dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal twill weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.



Maishi Twill Dutch Dutch weave stainless steel woven wire mesh / cloth offers light-proof woven, high resistance due to tight wire position, extreme low absolute grade of fineness (down to 5-6μm),high filtration performance in case of low viscose medium, it is the finest filtration in hydraulic systems, especially for critical applications as aero-space, fuel-and combustion.





Reverse dutch weave is difference from standard Dutch weave lies in the thicker warp wires and less weft wires.



Maishi Reverse Dutch weave stainless steel wire mesh/cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.

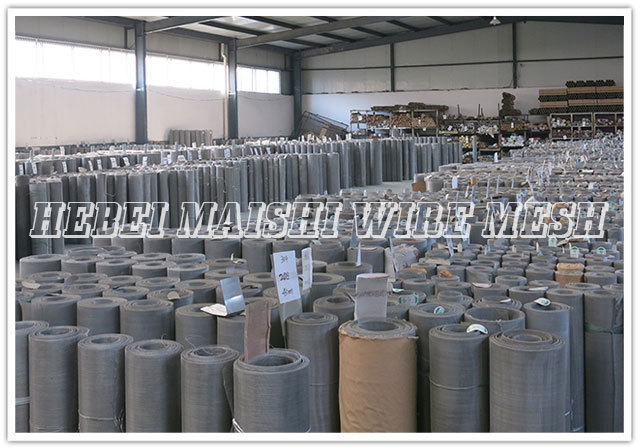

Factory show






Usage: extensively used in mining, chemical industry, food industry and pharmaceutical industry
Packaging:in waterproof paper, pvc bag, moist proof paper,wooden case,pallet.
